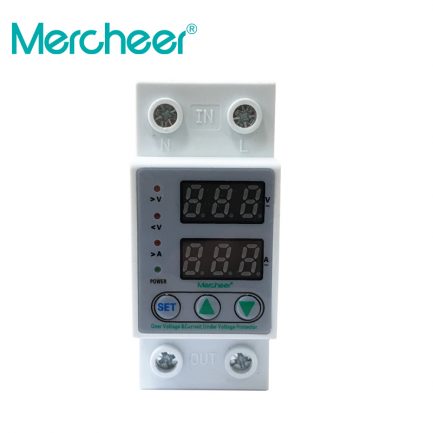

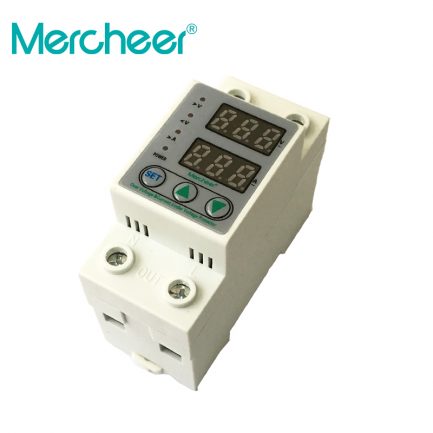

1-63A 230V Din rail adjustable over and under voltage protective device protector relay with over current protection Voltmeter

Function: 1. Under voltage protection 210V-145V (adjustable) (default: 170V)

2. Over voltage proteciton 230V-300V (adjustable) (default: 270)

3. Over current protection 1A-63A (adjustable) (default: 40A)

4. Reconnect time (delay on time): 3s-300s (default: 30s)

5. Voltage meter

6. Ammeter

Rated voltage: 220V; Frequency: 50Hz/60HZ

Over current protection: 1A-63A (adjustable) (default: 40A)

Under-voltage action switch-off value: 210V-145V (adjustable) (default: 170V)

Over-voltage action switch-off value: 230V-300V (adjustable) (default: 270)

Reconnect time (delay on time): 3s-300s (default: 30s)
