LED Stair Light Strip Motion Sensor Dimming PIR Streamline Addressable Light Under Cabinet DC24V Light Strip Follow the Footstep

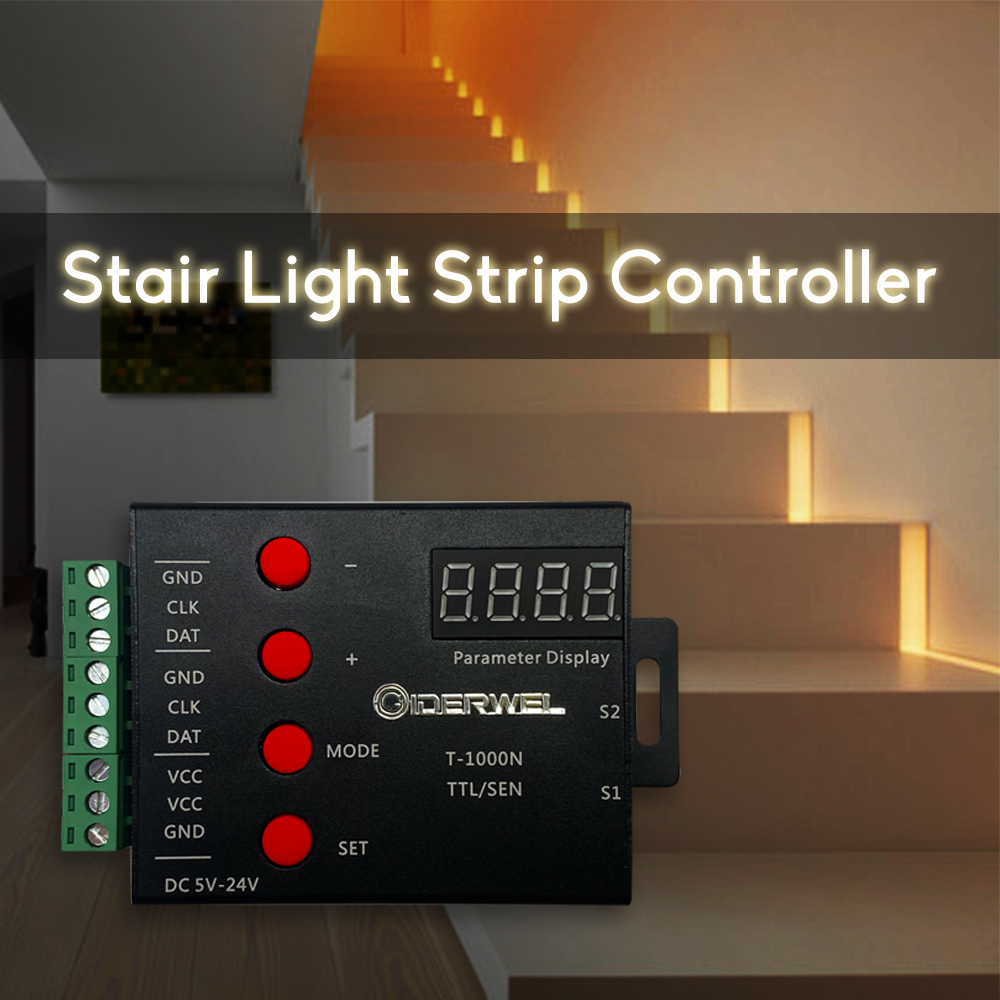

LED Stair Light Strip Controller PIR Motion Sensor Addressable LED RGB Strip Lights for Control Each Stair Light,Indoor Motion

Product packaging:

Input Voltage: DC5-24V

PIR Sensing distance:16ft-32ft (5m-10m)

Applicable Products:WS2812B,WS2811,1903 Dreamcolor LED light strips and so on.

Product instructions:

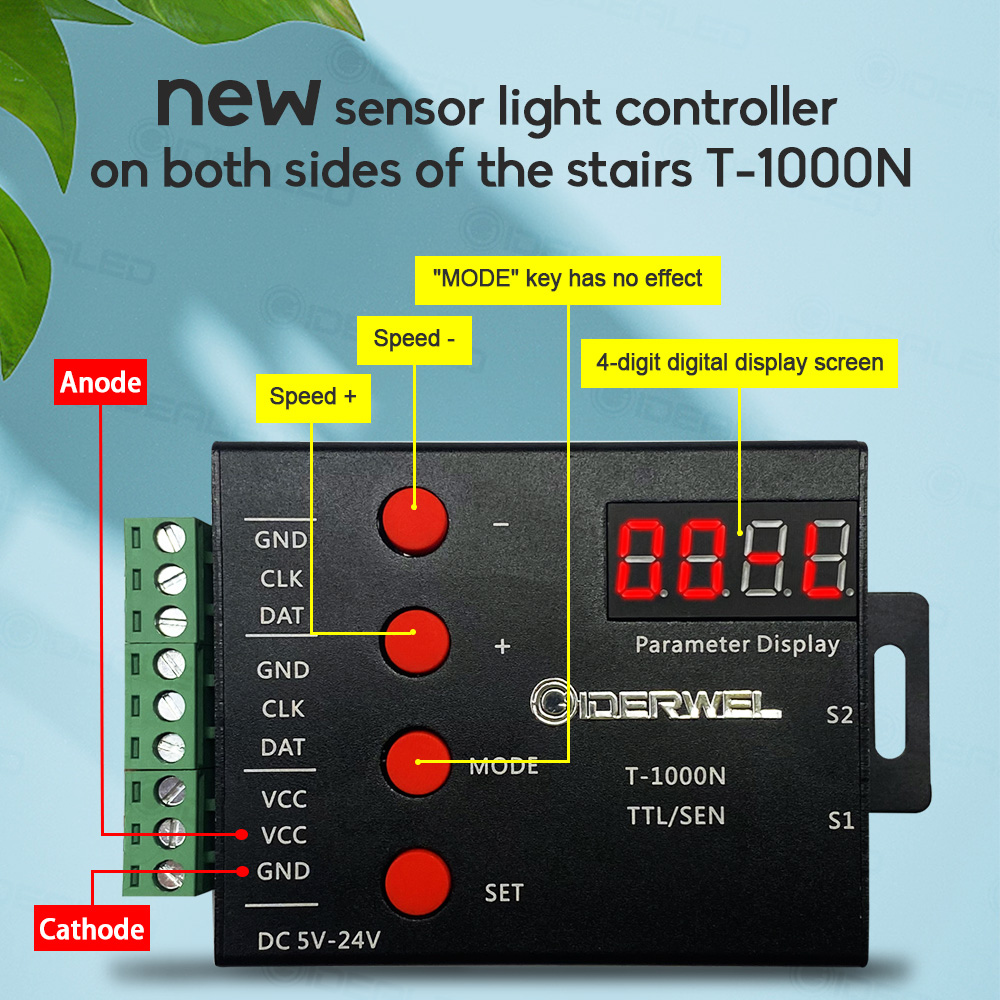

  After the controller is powered on, the nixie tube will display “XX-L”, “XX” represents the lighting speed of the addressable light strip, you can directly press SPEED- SPEED+ to adjust it to your appropriate speed. The run speed of light strip will get slower when the number is higher(Max 99-L)

  When you need to adjust other parameters, press the “SET” key to enter the setting mode.

  By pressing the “SET” key to enter the first item displayed as “LXXX”, you can adjust the length of the addressable light strip. “XXX” at the beginning of L is 3 digits. These 3 digits are the number of beads of the light strip. The button SPEED- SPEED+ can be adjusted and supports up to 800 lamp beads.

  After the adjustment is completed, press “SET” again to enter the second item of the setting and display “P-XX”, adjust the light color of the addressable light strip, there are 32 different mode effects, options P-01 to P-32 .

Note：Due to the monochromatic light of this addressable light strip, only “P-01” and “P-09” have normal effects.

  Press “SET” again to enter “E-XX” to set the duration of the light strip's overall continuous lighting. E001-E999, the higher the number, the longer the light stays. It is also adjusted by pressing the SPEED- SPEED+ button (recommended to be set to E001)

Note: The light can be continuously lit for up to 999 seconds, and it cannot be continuously lit.

  After adjusting all the settings, press the “SET” key to return to the initial display state of “XX-L”. At this time, the controller will save a series of setting parameters you just made, and the saved setting parameters will be used next time you turn on the machine.

If you have any questions about the product, please consult online customer service. We will actively answer your questions.

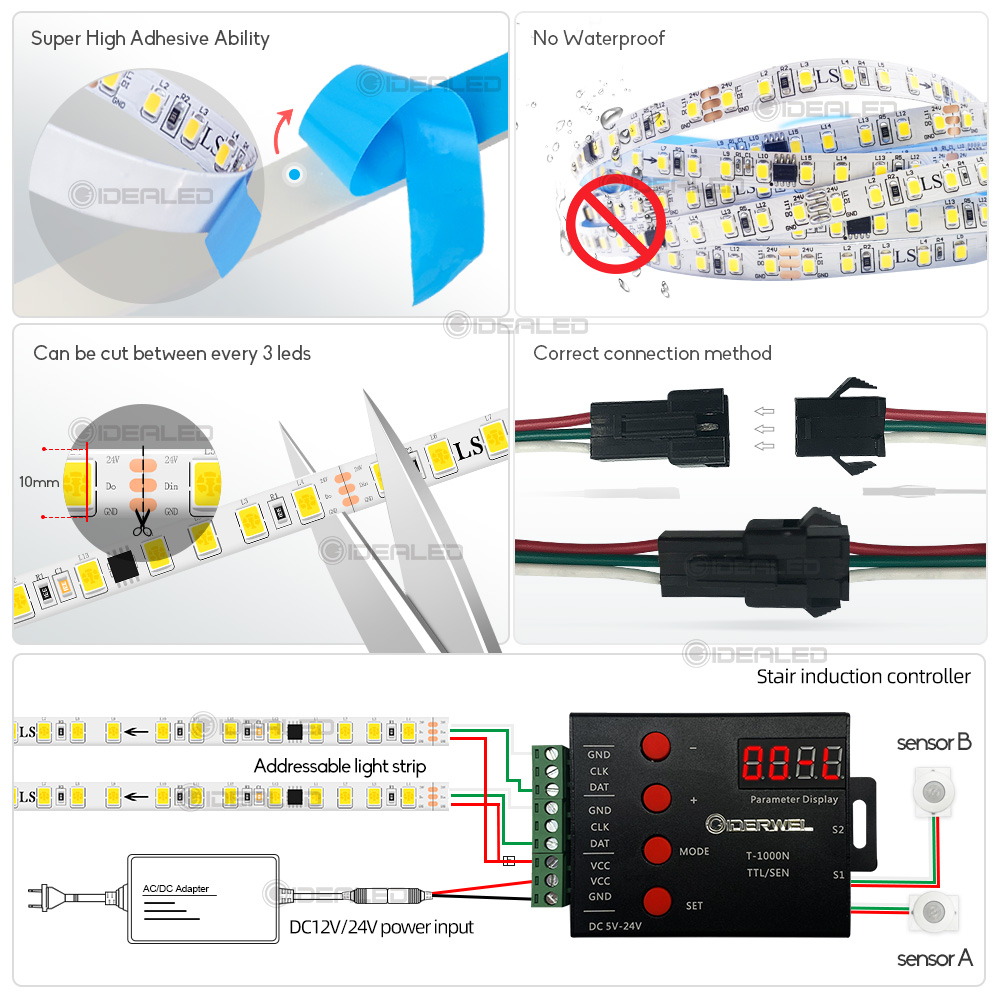

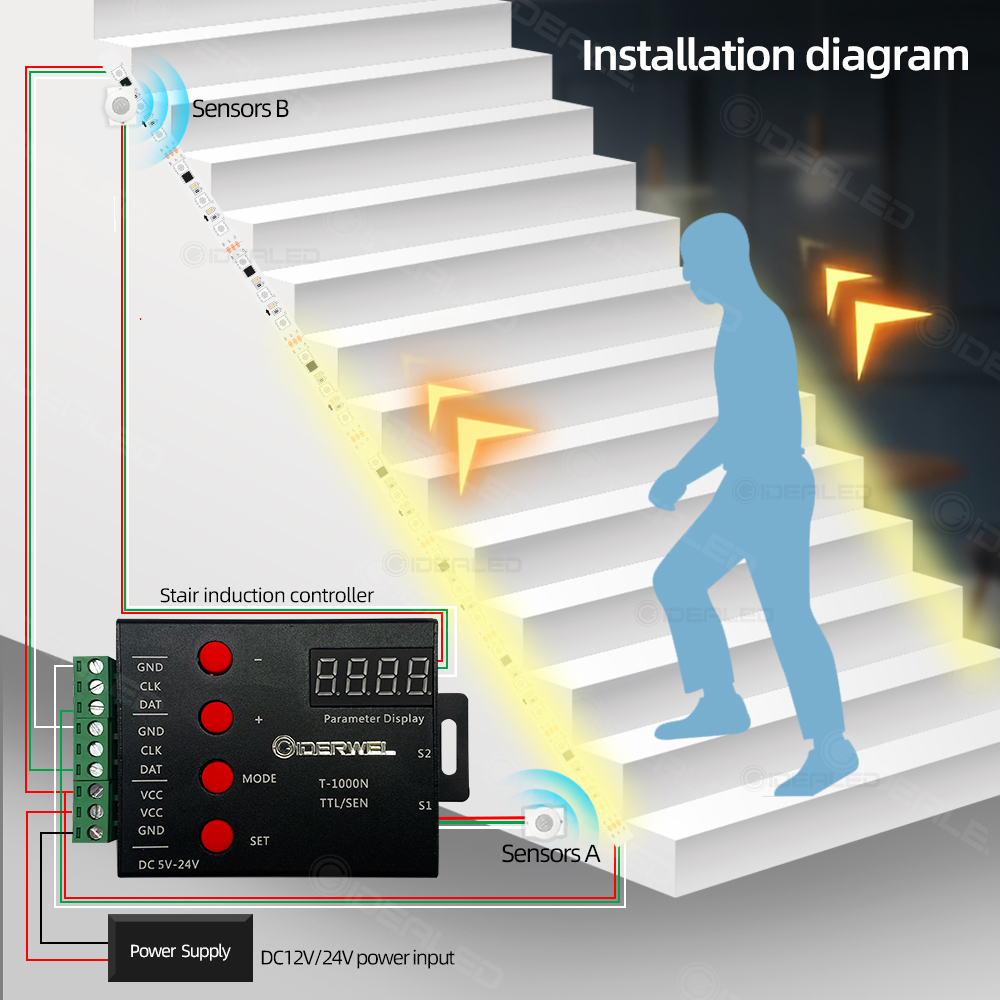

Installation diagram:

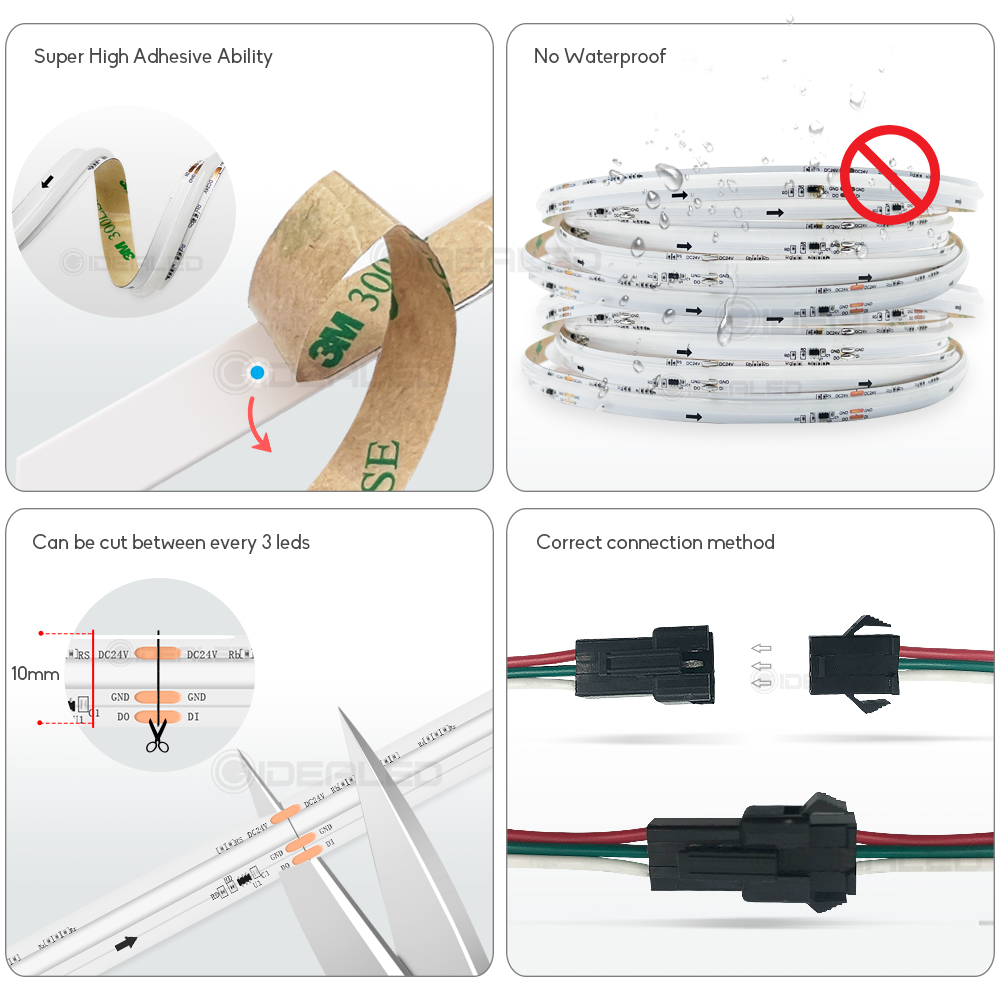

24V COB RGBIC Light Strip Advantages:

1. 720 chips are arranged in a linear way, integrated package, with uniform light color and no light spot;

2. High thermal conductivity flexible circuit board design, can be bent at will, convenient for installation;

3. The LED chip is directly mounted on the FPC, and the luminous angle can reach 180 degrees;

4. DC24V constant voltage design, safe low voltage, low voltage drop, standard cascade 5m;

5. The back is pasted with high viscosity heat conduction double-sided adhesive tape, which is convenient for installation and firm and durable for pasting;

6. LED light source, energy-saving and environmental protection, in line with national environmental standards.
