Motion Sensor COB LED Light Strip Stair LED Controller Dimming Indoor DC12V No Need to Weld Wires Installation For Stairs

No need to weld wires LED Controller with Motion Sensor for Light Strip Stair Dimming Light Easy Connect & Installation to 4 PIN Main Wire to the Stair step light COB LED Strip 12V

Product description

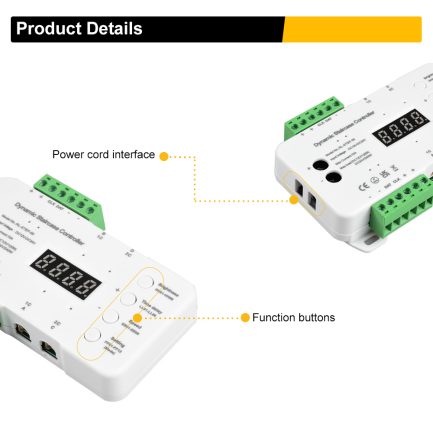

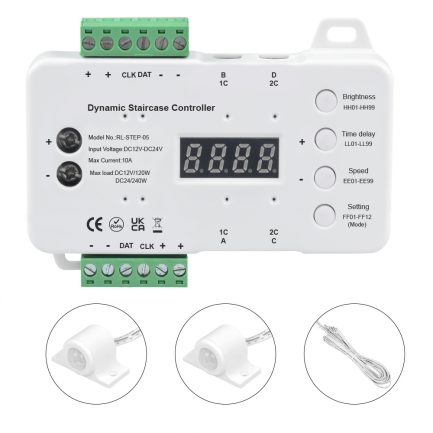

Dynamic staircase Controller RL-STEP-05

Voltage: DC12V/DC24V

Power: each step<15w total<240w

DC12V /120W; DC24V/ 240W Max

Sensors: 2 PIR Sensor

Special function: 4PIN main wire for Max 99 steps Delay Time/Speed / dimmable Lights and 12 Model

PIR Sensor: fixed mounted or recessed mounted ( Dia 15mm only )

NOTE:

This controller does not have the function of lighting on both sides of the stairs.

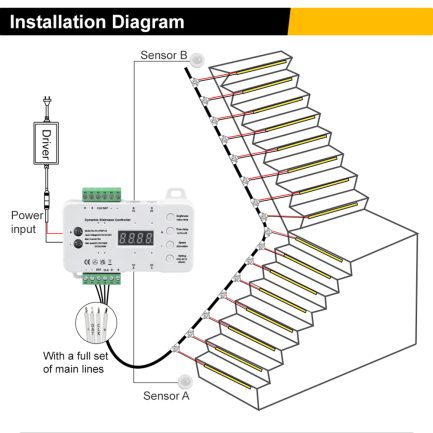

1- A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.
2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.
3- The product is not waterproof.

Important note: The positive and negative terminals of the power supply input of the controller cannot be reversed, the red wire V+ is connected to the positive electrode of the switching power supply, and the blue (or black wire) V- is connected to the negative electrode of the switching power supply.

Product upgrade:

The stair controller has added a dimming function, which can adjust the brightness of the light according to your needs.

Product package:

16 Step Controller ： LED Controller + 2 PIR Sesor + 5m Extension cord + 4PIN Main Lines with 16 step

（LED Strip light and Power supply Not contain）

20 Step COB Set-3 : LED Controller + 2 PIR Sesor + 5m Extension cord + 4PIN Main Lines with 20 steps

+ 20pcs 1m 12V 3000K Wram white COB strip light + 12V 150W Power supply

20 Step COB Set-6 : LED Controller + 2 PIR Sesor + 5m Extension cord + 4PIN Main Lines with 20 steps

+ 20pcs 1m 12V 6000K Cool white COB strip light + 12V 150W Power supply

150W 12V Transformer : 1pcs 150W 12V Transformer Only （Does not contain any other products）

10pcs 3000K COB：10pcs 12V 1m 3000K（Warm white） COB Light Strip Only（Does not contain any other products）

10pcs 6000K COB：10pcs 12V 1m 6000K（Cool white）COB Light Strip Only（Does not contain any other products）

10m extend cable： 2 roll 5 meters Sensor extension cable （When purchasing the sensor extension cable, you need to buy our controller at the same time to use it. If you purchase the sensor extension cable separately, we will not ship it.）

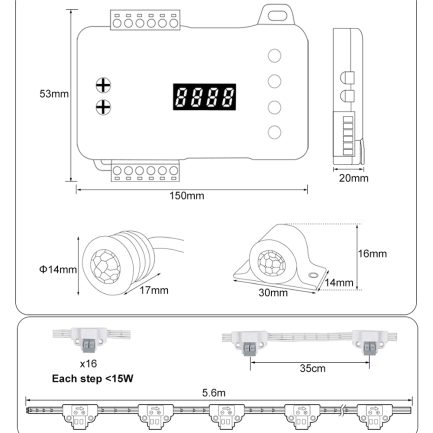

4 PIN main wire each step spacing 35cm
