Only Controller: 1pcs stair light controller + 2pcs sensors
10 Step COB LED Set: 1pcs stair light controller + 10pcs sub-controllers + 10pcs 1m 12V COB light strips (light color according to your choice)+12V power supply
Note:The product does not include a power cord. Need to prepare a 0.75-2 square wire for connecting to each sub-controller.
2 COB Sub-Control: 2pcs sub-controllers + 2pcs 1m 12V COB light strips (light color according to your choice)
2 Sub-Controllers: 2pcs Sub-Controllers
5m Addressable Light: 5m 12V 3pin Addressable Light(light color according to your choice)
400W Transformer: 12V 400W Transformer






♦ How to set up the program? ♦
1.Matching the sensor code: (Note: Only one sensor can be connected to the code at a time)

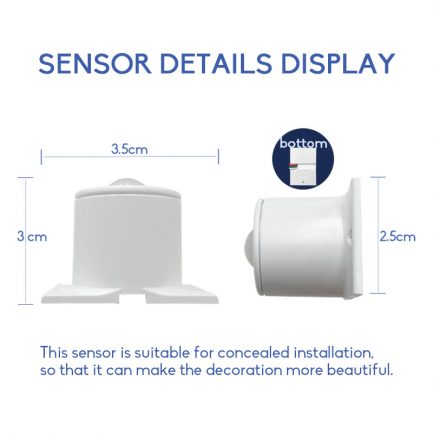

Sensor 1# matching:

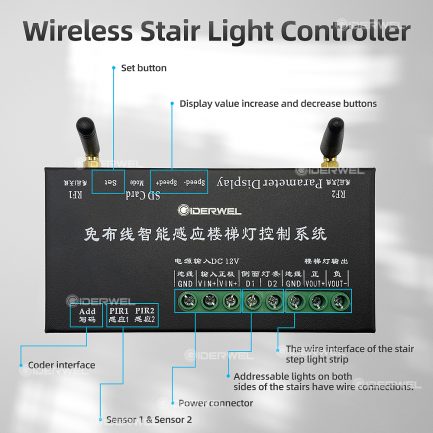

①Code pairing: power off the controller first,then pressing the “Set” button when power on the controller, the screen displays P-20,and release the “Set” button.
②Test: Trigger the sensor 1#, the wireless sensor module will light up the red indicator light, and light strip will light up normally.In this case, the code matching is successful. If there is no response to the light strip, re-check the code in step ① until the sensor test is successful.
Sensor 2# matching:
①Code pairing: also power off the controller first, then pressing the “Mode” button when power on controller, the digital display shows P-30, and release the Mode button.
②Test: Trigger the sensor 2#, the wireless sensor module will light up the red indicator light, and the light strip will light up normally.In this case, the code matching is successful. If the light strip does not respond, please re-code in step ① until the sensor test is successful.

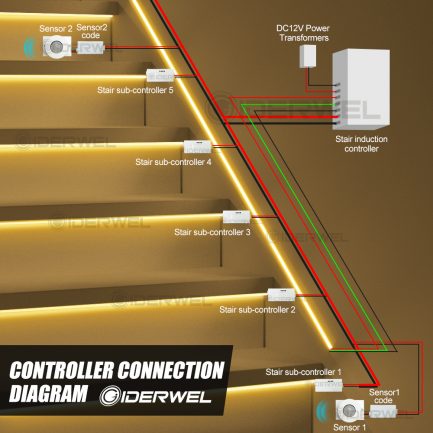

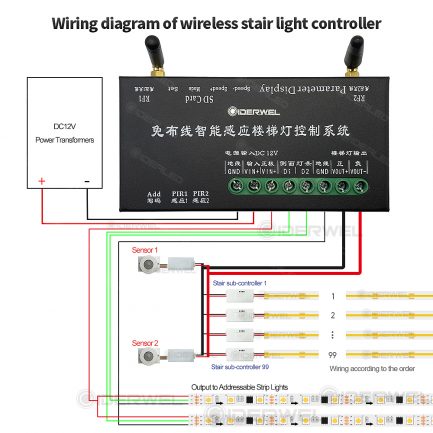

2. Setting the stair step sub-controller:
Please insert the 4pin code writer into the “Add” port of the controller, and then press and hold the “Set” button for about 2 seconds,the screen will display d-01. After completion,enter the sub-control address code writing interface.
Press the “Mode” button twice to start code matching. After the code is successfully matched, the screen will display “EEE5”, if the code is unsuccessful, the screen will display “EEE3”. If you encounter unsuccessful situations, press the “Mode” button again to continue the code matching until the code is successfully matched.
3. Each digital display interface of the controller and the corresponding function setting description.
