All kits are soldered !
TGAM Starter Kit Brainwave Sensor EEG Sensor Brain Control Toys for Arduino or Neurosky App Development With TGAT1 Providing SDK
With the kit, you could make a Wear BCI device by yourself.
The NeuroSky TGAM technoloy provides a powerful foundation for developing applications that promote improved focus, concentration, working memory, and mind acuity. Other uses include meditation, relaxation monitoring, and improved educational processes. The low-cost OEM solution is a high-performance bio-signal on a single chip for accurate brain activity detection and processing.
Features
· Direct connect to dry electrode
· One EEG channel + Reference + Ground
· Extremely low-level signal detection
· Advanced filter with high noise immunity
· RAW EEG at 512Hz
Data Outputs
· RAW EEG Signal
· Attention
· Meditation
· Delta, Theta, low apha, high alpha, low beta, high beta and gamma waves
· Additional algorithms available in SDK
Dimensions

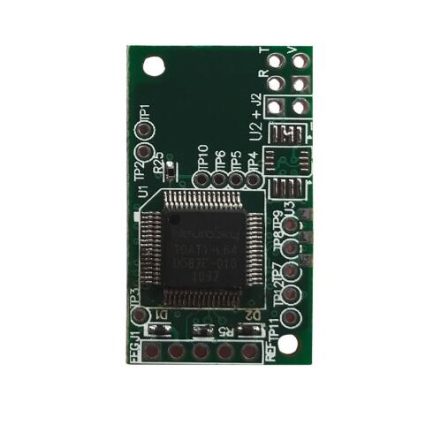

· TGAM1 Module: 27.9 x 15.2 x 2.5mm
· TGAT1 Chip: 9 x 9 x 1.6mm
· Weight (Max) 130mg
Specifications
· 512Hz sampling rate at 12 bits
· 3-100Hz frequency range
· ESD Protection: 4kV Contact Discharge; 8kV Air
· Max Power Consumption: 15mA @ 3.3V
· Operating voltage 2.97 ~3.63V
· UART (Serial):
· 1200, 9600, 57600 baud
· 8-bits
· No parity
· 1 stop bit
Package List:
1、Brainwave Module:TGAM Module *1

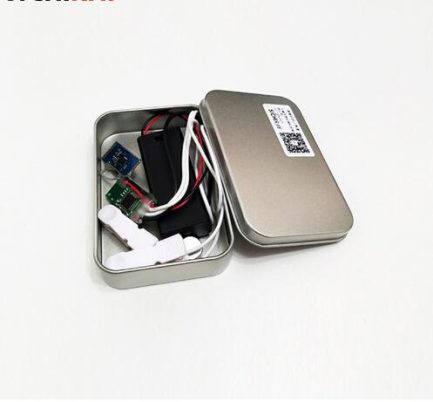

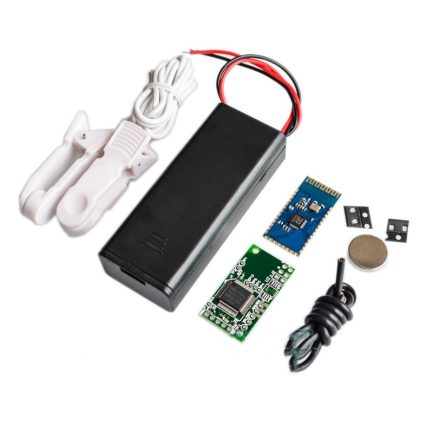

2、bluetooth kits:
TGAM Module *1

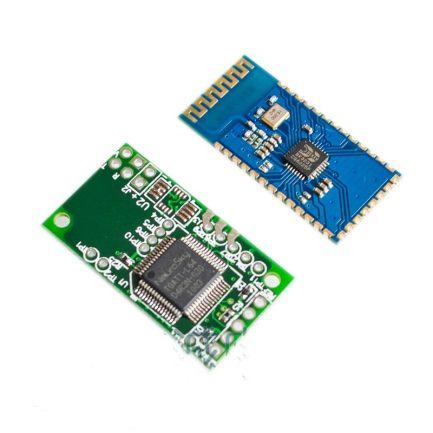

Bluetooth Module *1
Battery Case *1
Shielding Wire *1
3、Bluetooth adapter:
Bluetooth adapter*1
TGAM Module *1
Bluetooth Module *1
Battery Case *1
Shielding Wire *1
4、Arduino kits:
Arduino development board
Bluetooth adapter*1
TGAM Module *1
Bluetooth Module *1
Battery Case *1
Shielding Wire *1
5、STM32 kits:
STM32 development board
Bluetooth adapter*1
TGAM Module *1
Bluetooth Module *1
Battery Case *1
Shielding Wire *1
