Model No.: WE826-T2
Dear Customers, If you want to use 3G 4G or SIM card, please choosing 3G/4G version.
The neutral version cannot work with 3g 4g and sim card directly, it has sim card slot, but just a normal router,you can enjoy your wireless wifi life when it is wired, and will come with 2 wifi antennas.

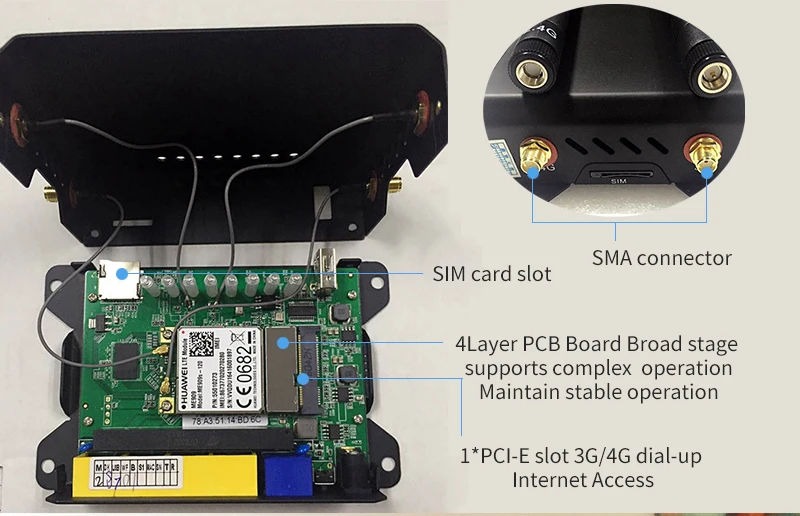

For 3G 4G version, our 3G 4G modem is built in the router. When you place an order, you only need to insert sim card or 3g 4g network card (no wires required) to make the router share wifi. You can use it outdoors where there is a signal.
Bundle Situation (Important!!!)
Neutral(NO 3G 4G): 300Mbps wireless router, it has SIM card slot, but does NOT support SIM card, and will come with 2 wifi antennas.
3G Version(For most Country):
3G: HSPA+/UMTS dual-band 900/2100 MHz
2G: GSM/GPRS quad-band 850/900/1800/1900 MHz
4G Asia version(For most Asia country):
4G: LTE: B1/B3/B8/B38/B39/B40/B41
3G: TDSCDMA: B34/B39/B1/B8/BC0
4G AU version((For Australia):
4G: LTE: B1/B3/B4/B5/B7/B8/B28/ B40
3G: WCDMA: B1/B2/B5/B8
2G: GSM: B2/B3/B5/B8
4G EU version (For Europe, Some of Asia Country, Africa):
4G: LTE: B1/B3/B5/B7/B8/B20/ B38/B40/B41
3G: WCDMA: B1/B5/B8
2G: GSM: B3/B8
4G USA version 1(For America):
4G: LTE: B2/B4/B12
3G: WCDMA: B2/B4/B5
4G USA version 2(Cat 6):
4G: LTE(B1–B5, B7,B12,B13,B20,B25,B26,B29,B30,B41)
3G: WCDMA(B1,B2,B3,B4,B5,B8) ; TD-SCDMA; CDMA 1XRTT/EV-DO Rev A
If you don’t know which version that you need to choose, here are some countries’ version for your reference.
If your country is not mentioned and you don’t know which version need to choose, please contact me and we will help you.
Or you can check from the below links:
1. Can i attach my own 4G antennas if i buy 4G version?
Yes, It is RP-SMA connector. If you buy 4G versioin, it will come with 2 x 2.4G wifi antennas, 2 x 4G antennas, so you can attach your own 4G antennas.
2. Can i use it to my car?
Yes, it can be used as vehicles router, you only need to use a conventor to change the car voltage to 12V.
3. Can i connect to my IP camera by 3G 4G?
Yes, it supports.
4. How to set up the router?
Please tell me your email and i will send you the openwrt user manual, it is very easy to set up.
5. What is neutral version?
That means the router only has sim card slot, but isn’t installed 4G module, so it doesn’t work with sim card. and it will come with 2 wifi antennas. If you need it work with sim card, please select 4G version!
WE826-T2 LTE router with sim card slot also can be used as vehicles router ,you only need to use a conventor to change the car voltage to 12V.
we can also send you a vehicle Cigarette Lighter, following is the photo for it. If you need it, please tell me in advance.
IEEE 802.11n、IEEE 802.11g、IEEE 802.11b、IEEE802.11ac 、IEEE802.11a
IEEE 802.3、IEEE 802.3u
802.11ac depends on the 11AC mode;
802.11b: -83dBm@10% PER
802.11g: -74dBm@10% PER
802.11n: -68dBm@10% PER
802.11ac: depends on the 11AC mode;
2.4GHz choose ：1-13
5GHz choose ：149、153、157、161、165
2 or 4 *undetachable 5dBi antenna
1*SIM card slot
1*USB 2.0 port
1*Micro SD card slot
1*10/100/100M WAN port（Auto MDI/MDIX）
4*10/100/100M LAN port（Auto MDI/MDIX）
Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
Max Power consumption
PPPoE、Dynamic IP、 Static IP、3G 4G Dial up
Server, Client, DHCP Client List, Address Reservation
Virtual Server, Port Triggering, UPnP, DMZ
Dos, SPI Firewall
IP Address Filter/MAC Address Filter/ Domain Filter
IP and MAC Address Binding
Web firmware upgrade
Operating Temperature：0℃ ~ 40℃；
Storage Temperature：-40℃~ 70℃；
Operating Humidity：10%~90% non-condensing
Storage Humidity：10%~90% non-condensing
CE, FCC, RoHs
Power adapter, Network cable
